Custom DED Systems
Customized DED Systems Designed to Meet Customer Requirements, from Research to Production
Engineered around your requirements
InssTek provides customized DED systems optimized for customers' research objectives and manufacturing environments, based on the proven capabilities of MX-Lab, MX-Fab, and robot-based DED systems.
From the machine platform and laser optics to the build volume, motion axes, monitoring system, and automation, every specification is tailored to deliver the optimal DED solution for your application.
- Research
- Manufacturing
- Robotics
- Automation
Custom Cases
MX-Lab Custom
Customized Body Structure for Process Monitoring
- Customer Need
Bidirectional observation of the DED process in a synchrotron-based analysis environment.
- Customized Components
Custom machine body, motion axes, moving table, and open-frame structure for in-situ process observation.
- Custom Solution
A customized MX-Lab platform providing unobstructed observation paths on both sides for real-time process monitoring in a synchrotron research environment.
- Application
Research DED System for a U.S. Laboratory

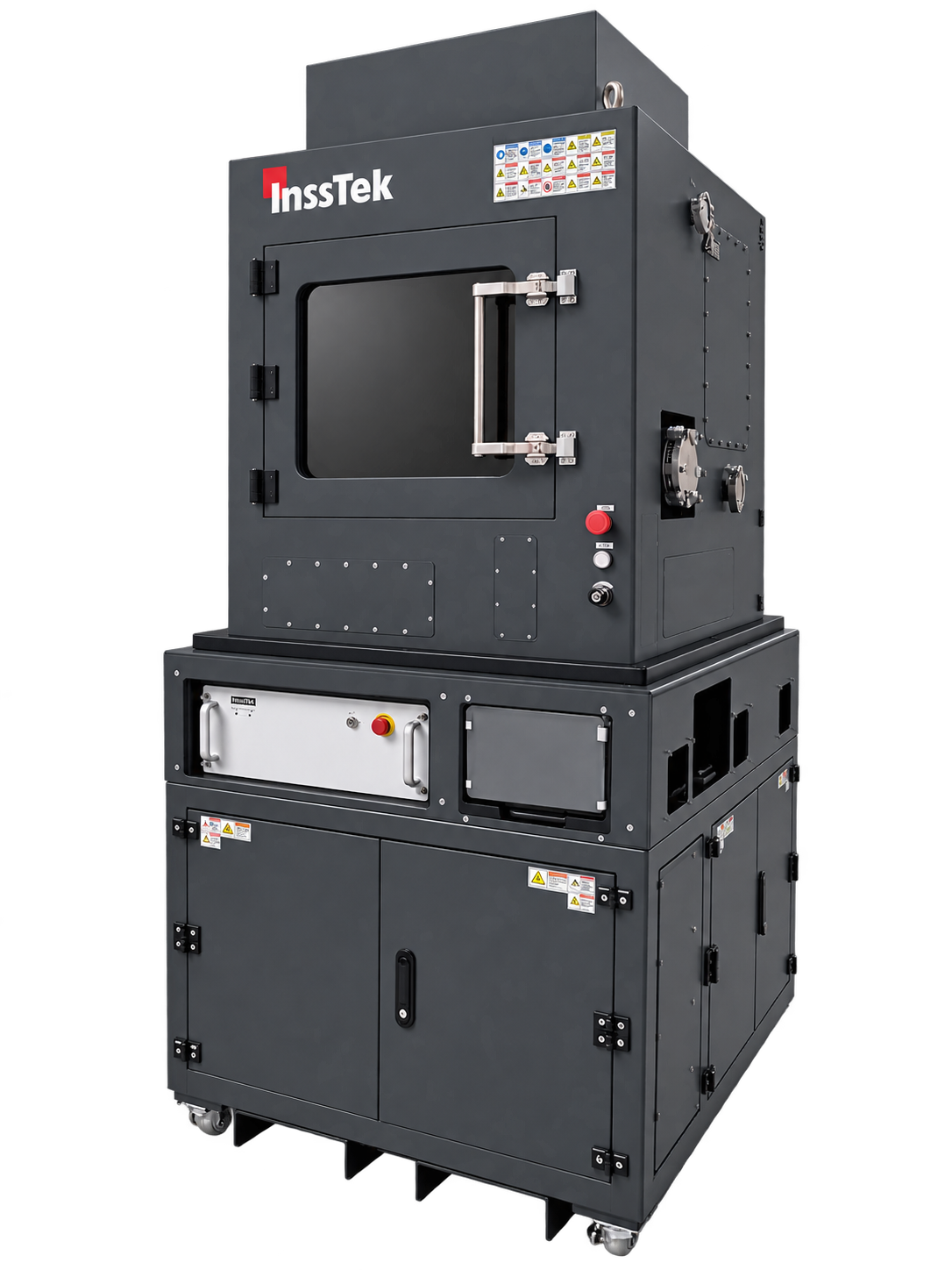

MX-Fab Custom
Customized Blue Laser System
- Customer Need
A 450 nm blue laser-based DED system was required for advanced materials and process research.
- Customized Components
Blue laser, optics, body/case
- Custom Solution
The system integrates a 450 nm blue laser with optimized optics, while the machine structure and internal components are customized to meet specific research objectives and process requirements.
- Application
Research MX-Fab System for a U.S. Laboratory
Robotic DED Custom
Customized Robotic DED Systems for Specialized Applications
- Application
- NARAE (Large-scale Robotic DED System)A customized robotic DED system featuring multi-axis robot motion and an expanded working envelope for manufacturing and repairing large-scale components.
- ROBO-Med (Robotic Medical Manufacturing System)A customized manufacturing system integrating a robotic arm and DED technology for automated production of medical components.
Customizable Components
Key components of the DED system can be customized to meet each customer's research and production requirements.
| Item | Description |
|---|---|
| Laser Power | Configure laser power, wavelength, and optics according to the target material and process requirements. |
| Powder Feeding | Configure the powder feeding system for single- or multi-material processing. |
| Build Area & Motion | Design the working envelope, axis configuration, and motion system according to the size and geometry of the target parts. |
| Machine Structure | Customize the machine body, enclosure, and internal layout according to the research environment, accessibility, and process observation requirements. |
| Process Environment | Configure the chamber and process environment for argon atmosphere, oxygen control, and specific process requirements. |
| Thermal Control | Integrate heating plates and other thermal management solutions. |
| Monitoring & Sensors | Integrate process monitoring devices such as IR cameras, vision cameras, pyrometers, and thermocouples. |
| Automation & Integration | Integrate robots, external equipment, and other research or production systems. |
Customization options may vary depending on the base system and process requirements.
Custom Process
Requirements
Analyze materials, part size, process objectives, and operating environment
Configuration
Select the base platform and customization options
Engineering
Design the mechanical, optical, motion, and automation systems
Integration
Integrate the system and optimize the process
Custom System
Deliver a customized DED system
Please contact us for more information. Customize your DED system through consultation, including laser power, powder feeders, zoom optics, shielding gas, build size, motion axes, camera systems, and automation options.
